POWERCOOL MULTI-SPLIT

POWER COOL, Breakthrough in Portable Air Conditioner
  • Convenient
    portable cooling
  • No need for
    pipe/duct work
  • Split Type
    (Indoor and Outdoor Units)
  • Up to 4 in 1
    configuration

Cooling OnlyPortable multi-split type POWERCOOL MULTI is a portable multi-split air conditioner in which a plurality of portable indoor units are connected to one portable outdoor unit. Place each portable indoor unit (up to 4) in the areas to be cooled and the portable outdoor unit in a separate place.
Comfortable cooling is possible in multiple places with one outdoor unit without any installation work required for conventional air conditioners.

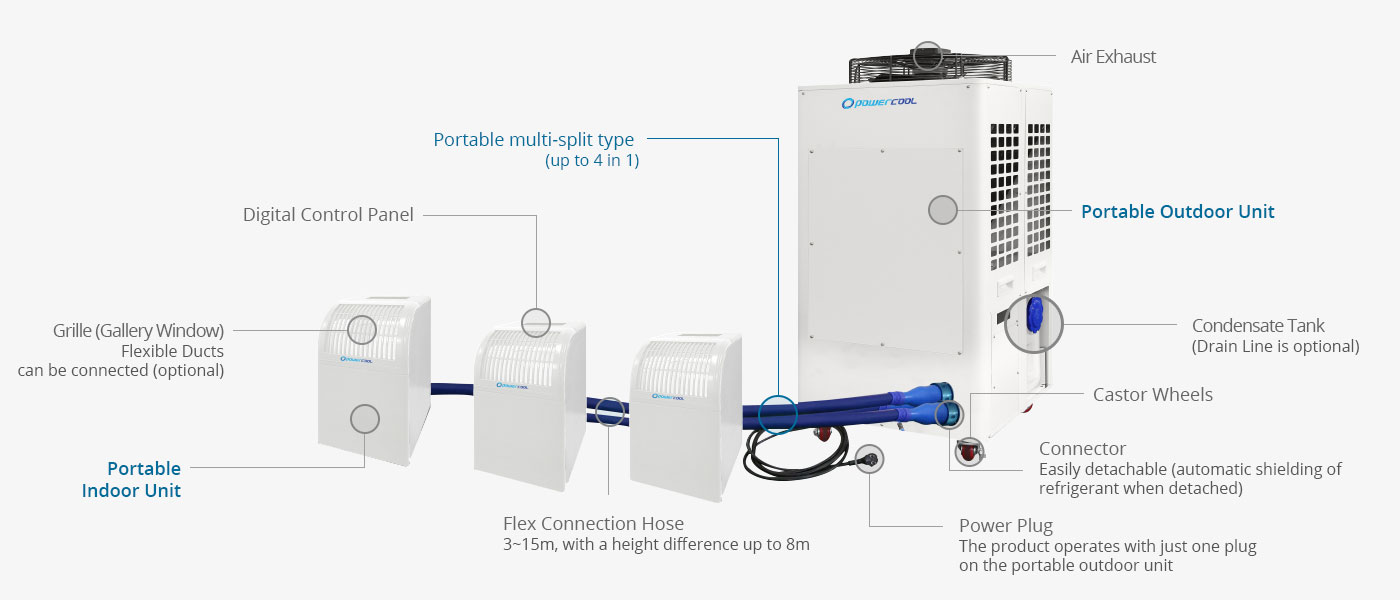

Key Components

파워쿨 멀티 제품의 구성요소(열두시 방향부터 시계방향으로 공기 배출기, 배출 유닛 - 실외기 역할, 전원 플러그 - 배출 유닛 측 플러그 1개 연결만으로 제품 작동, 이동식, 우레탄 바퀴, 커넥터 - 간편한 탈부착(탈착 시 냉매 자동 차폐), 멀티 분리형 - 최대 포인원(4 in 1)가능, 후렉시블 커넥션 호스 - 3m~20m/높이 차이 최대 10m, 냉방 유닛 - 실내기의 역할, 그릴(갤러리창)- 에어 익스텐션 호스 연결가능(옵션), 디지털 조작판넬)에 관한 이미지.

FEATURES

  • Comfortable Cooling The splittable structure enables quiet and efficient cooling without the heat and noise generated from the exhaust fan.
  • Energy-Saving Environmentally-Friendly Cooling 410A eco-friendly refrigerant, energy savings through Automatic control of exhaust fan/compressor.
  • Partial/Intensive Cooling as Desired Adjust the Flexible Ducts to provide partial/intensive cooling where desired (0.5 m standard, recommended maximum length of 10 m). Maximize local cooling effect by adjusting damper base (blowing controller) attached to the duct.
  • Uniform Cooling When the grille is used (optional), the blowing range is widened, allowing for uniform cooling of the space.
  • Convenient Portability and Safe Usability The outdoor unit is equipped with 4 castor wheels that offer 360 degree rotation for smooth and comfortable movement and mounted with a fixing device for safe usage.
  • Reliable Product The whole process from design/production to testing/packaging is controlled under strict quality management system.
  • Convenient Digital Controller Functions such as timer (off timer), air volume (3 steps), temperature, cooling/blowing mode, condensate alarm, start/stop, current status, and the like, are all displayed and controlled via one digital controller.
  • Reduced Condensate Discharge With a Condensate Self-evaporating System, the amount of condensate discharged is reduced, thereby reducing the hassle.
  • No Pipe/Duct Work Required Portable split type air conditioners can be used simply by connecting them to a power outlet, without pipe/duct works.

APPLICATIONS

  • Outdoor leisure Creating a comfortable environment in sports or leisure facilities such as a golf (practice) course, camping ground, water park, etc.
  • Kitchens and cooking areas Providing pleasant cooking environment in commercial kitchens, restaurants, schools, and institutions, etc. where cooking appliances release heat into the space.
  • Industrial sites Improving industrial work environments and increasing productivity during operations such as machining, assembly, and welding.
  • Outdoor venues and events Creating a pleasant atmosphere during events such as outdoor concerts, outdoor weddings, pop-up stores, festivals, etc.
  • Industrial agriculture and livestock sites Improving the welfare of crops and animals at pigsties, cowsheds, poultry farms, flower gardens, etc.
  • Outdoor workplaces Protecting workers exposed to extremes of heat at outdoor workplaces such as car centers, machine shops, gas stations, car washes, parking lots, etc.
  • Outdoor waiting areas Enhancing customer comfort at rest areas, cafe terraces, ticket offices, concert hall entrances, etc.
  • High temperature equipment room Creating a safe and comfortable temperature conditions at work places such as herbal medicines preparation room, computer server room, heat exchanger room, etc.

SPECS

파워쿨 멀티 제품의 제품사양으로, 모델명, 냉방면적, 냉방 유닛수, 냉방능력, 전원, 제품크기, 제품중량, 소비전력, 운전전류, 풍속, 온도범위, 냉매종류 정보 제공
SPECS PCM1502 PCM1503 PCM1504
Portable Indoor Unit Portable Outdoor Unit Portable Indoor Unit Portable Outdoor Unit Portable Indoor Unit Portable Outdoor Unit
Cooling Area ㎡ 31.2 x 2 units 31.2 x 3 units 31.2 x 4 units
Number of Working units ea 2 3 4
Cooling Capacity kcal/h 1,500 5,200 1,500 6,050 1,500 8,000
Power Source Ø1 x 220~240V x 50/60Hz Ø1 x 220~240V x 50/60Hz Ø1 x 220~240V x 50/60Hz
Dimension W x D x H, mm 300 x 400 x 520 550 x 550 x 1270 300 x 400 x 520 550 x 550 x 1270 300 x 400 x 520 550 x 550 x 1270
Weight별첨 kg 20 x 2 units 74 20 x 3 units 74 20 x 4 units 74
Power InputkW 0.13 1.58 0.13 1.80 0.13 2.20
Power Current A 0.6 7.2 0.6 8.2 0.6 10.0
Airflow Rate m/s 7 ~ 8 7 ~ 8 7 ~ 8
Refrigerant R410A (Eco-friendly) R410A (Eco-friendly) R410A (Eco-friendly)
Optinal : Number of Flexible Ducts ea 0(Grill type), 1 0(Grill type), 1 0(Grill type), 1
Condensate Tank L 20 20 20

Weight: Unit weight only – the weight of the hoses (and ducts) is excluded.
