SINGLE-BOX POWERCOOL

POWER COOL, Breakthrough in Portable Air Conditioner
  • Convenient
    portable cooling
  • No need for
    pipe work

Cooling OnlyPortable Single-packaged Type SINGLE-BOX POWERCOOL is a portable single-packaged air conditioner which provides convenient cooling without a pipe work.
It is an ideal spot/partial cooling alternative to traditional air conditioners for those applications where wall mounting is not feasible and continuous movement and transportation requirements are necessary.

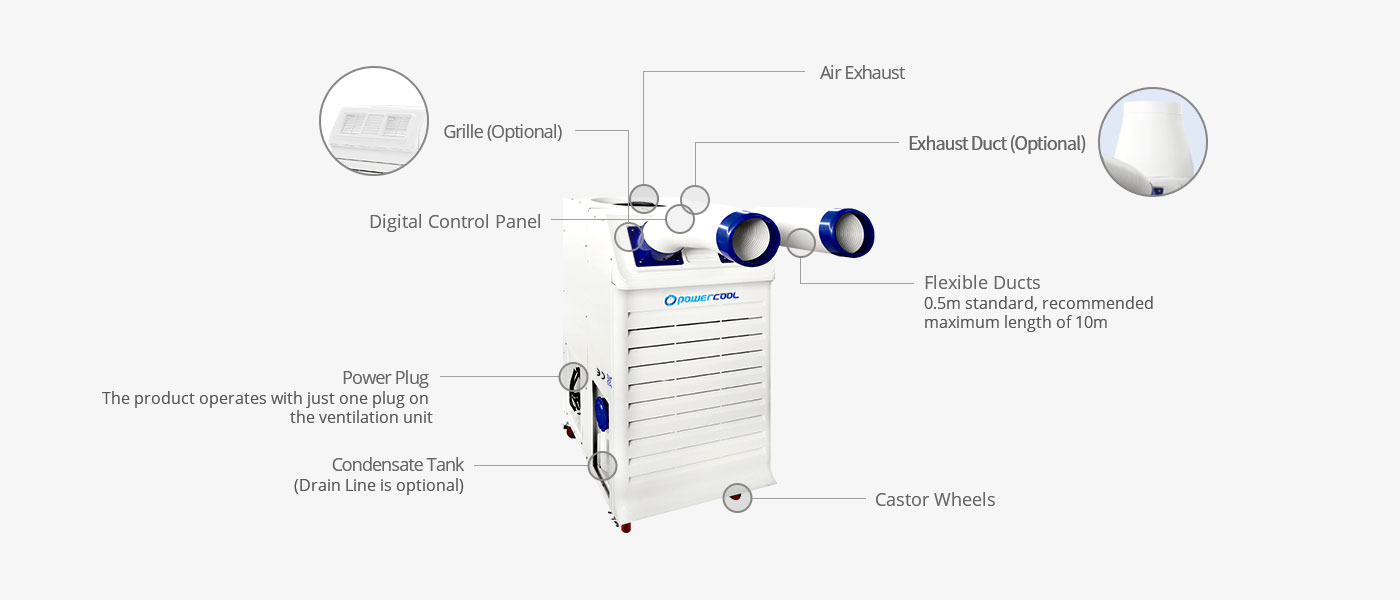

Key Components

파워쿨 싱글박스 제품의 구성요소(열두시 방향부터 시계방향으로 그릴(옵션), 공기 배출기, 전원 플러그 - 배출 유닛 측 플러그 1개 연결만으로 제품 작동, 이동식, 우레탄 바퀴, 에어 익스텐션 호스 - 기본 0.5m/권장 최대 길이 10m, 디지털 조작판넬)에 관한 이미지.

FEATURES

  • Partial/Intensive Cooling as Desired Adjust the Flexible Ducts to provide partial/intensive cooling where desired (0.5 m standard, recommended maximum length of 10 m). Maximize local cooling effect by adjusting damper base (blowing controller) attached to the duct.
  • Environmentally-Friendly Cooling R410A eco-friendly refrigerant and energy savings through smart control based on the surrounding environment.
  • Uniform Cooling When the grille is used (optional), the blowing range is widened, allowing for uniform cooling of the space.
  • Convenient Portability and Safe Usability Equipped with 4 castor wheels that offer 360 degree rotation for smooth and comfortable movement, and mounted with a fixing device for safe usage.
  • Reliable Product The whole process from design/production to testing/packaging is controlled under strict quality management system.
  • Convenient Digital Controller Functions such as timer (off timer), air volume (3 steps), temperature, cooling/blowing mode, condensate alarm, start/stop, current status, and the like, are all displayed and controlled via one digital controller.
  • No Pipe Work Required Cooling simply by connecting to a power outlet, without pipe works.
  • Powerful Blowing Ability A sirocco fan(s) with large air volume provides powerful air flow.

APPLICATIONS

  • Outdoor leisure and recreation Creating a comfortable environment in sports or leisure facilities such as a golf (practice) course, camping ground, water park, etc.
  • Industrial sites Improving industrial work environments and increasing productivity during operations such as machining, assembly, and welding.
  • Outdoor venues and events Creating a pleasant atmosphere during events such as outdoor concerts, outdoor weddings, pop-up stores, festivals, etc.
  • Outdoor workplaces Protecting workers exposed to extremes of heat at outdoor workplaces such as car centers, machine shops, gas stations, car washes, parking lots, etc.
  • Outdoor waiting areas Enhancing customer comfort at rest areas, cafe terraces, ticket offices, concert hall entrances, etc.
  • Kitchens and cooking areas Providing pleasant cooking environment in commercial kitchens, restaurants, schools, and institutions, etc. where cooking appliances release heat into the space. (Split portable type might be better suited depending on the circumstances to be installed.)
  • Industrial agriculture and livestock sites Improving the welfare of crops and animals at pigsties, cowsheds, poultry farms, flower gardens, etc. (Split portable type might be better suited depending on the circumstances to be installed.)
  • High temperature equipment room Creating a safe and comfortable temperature conditions at work places such as herbal medicines preparation room, computer server room, heat exchanger room, etc. (Split portable type might be better suited depending on the circumstances to be installed.)

SPECS

파워쿨 싱글박스 제품의 제품사양으로, 모델명, 냉방면적, 냉방능력, 전원, 제품크기, 제품중량, 소비전력, 운전전류, 풍속, 온도범위, 냉매종류, 노줄 수 정보 제공
SPECS SPC3000 SPC4000 SPC5000 SPC6000 SPC8000
Cooling Area 별첨㎡ 31.2 39.7 49.2 52.7 75.6
Cooling Capacity kcal/h 3,300 4,200 5,200 6,050 8,000
Power Source Ø1 x 220~240V x 60Hz
DimensionW x D x H, mm 455 X 660 X 1020 455 X 660 X 1020 555 X 760 X 1150 555 X 760 X 1150 595 X 800 X 1250
Weight 별첨kg 72 89 111 120 140
Power InputkW 1.3 2.0 2.0 2.6 3.1
Running Current A 6 9 9 12 14
Airflow Rate m/s 8 ~ 9 10 ~ 12 10 ~ 12 14 ~ 15 14 ~ 15
Refrigerant R410A (Eco-friendly)
Optinal : Number of Flexible Ducts ea 0(Grill type), 1 0(Grill type), 2 0(Grill type), 2, 3 0(Grill type), 3 0(Grill type), 4
Condensate Tank L 20 20 20 20 20

Cooling Area: Based on when the exhaust duct is connected, it may be different in an environment where no exhaust duct is installed.

Weight: Unit weight only – the weight of the ducts is excluded.
